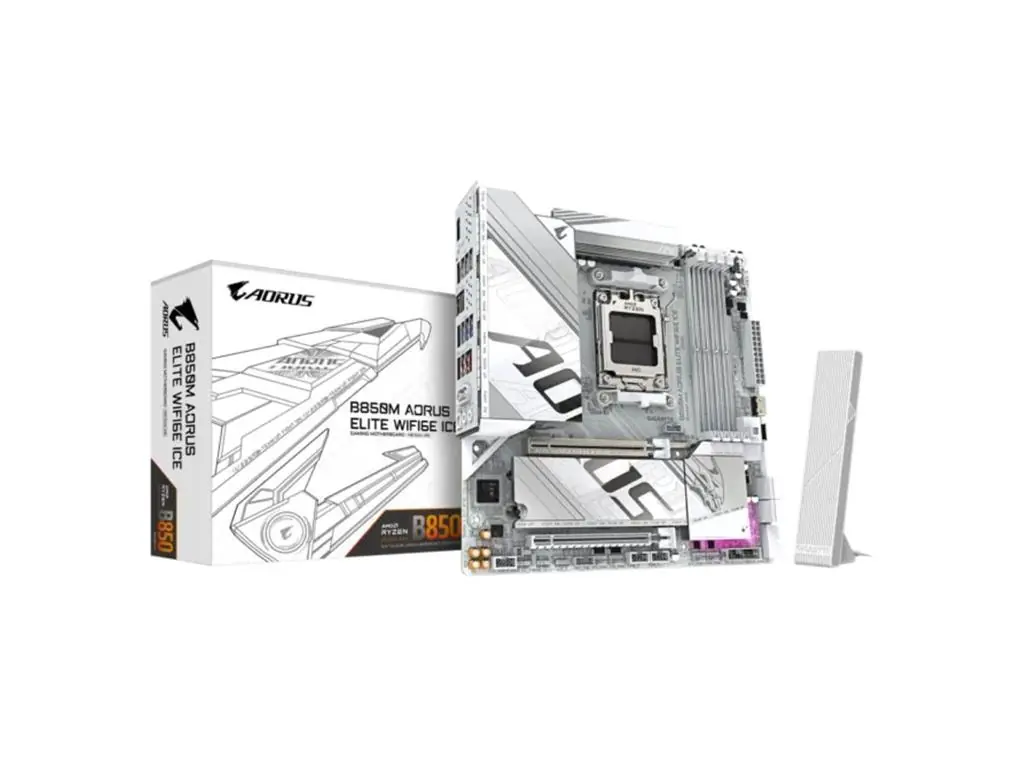

Placa Mae Gigabyte Amd (Am5) Ddr5 Micro Atx - B850m Aorus Elite Wifi6e Ice

________________________________________
Processador

• Soquete: AMD AM5
• Compatibilidade:
• AMD Ryzen™ 9000 Series
• AMD Ryzen™ 8000 Series
• AMD Ryzen™ 7000 Series
• Observação: consulte a lista de CPUs suportadas no site da GIGABYTE

Chipset

• AMD B850
________________________________________
Memória

• Tipo: DDR5
• Slots: 4 x DIMM
• Capacidade máxima: Até 256 GB
• Arquitetura: Dual Channel
• Velocidades suportadas:
• DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C)
• 7800(O.C) / 7600(O.C) / 7400(O.C) / 7200(O.C)
• 7000(O.C) / 6800(O.C) / 6600(O.C) / 6400(O.C)
• 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C)
• 5200 / 4800 / 4400 MT/s
• Suporte a módulos:
• Non-ECC Unbuffered
• 1Rx8 / 2Rx8 / 1Rx16

• Perfis de overclock:
• AMD EXPO™
• Intel XMP
________________________________________
Vídeo Onboard

• Gráficos integrados via CPU (AMD Radeon™ Graphics)

• Saídas:
• 1 x DisplayPort 1.4
• Resolução máxima: 3840 x 2160 @ 144 Hz
• Suporte a HDR
• 1 x HDMI frontal
• Resolução máxima: 1920 x 1080 @ 30 Hz
• HDMI 1.4

• Observação: recursos gráficos variam conforme o processador
________________________________________
Áudio

• Codec:
• Realtek® Audio Codec (Rev. 1.0)
• Realtek® ALC1220 (Rev. 1.1)

• Canais: 2 / 4 / 5.1 / 7.1
• Suporte a S/PDIF Out
• Saída Line Out traseira com suporte a DSD (Rev. 1.1)
________________________________________
Rede

• LAN: Realtek® 2.5GbE
• 2.5 Gbps / 1 Gbps / 100 Mbps
________________________________________
Wireless

• Wi-Fi: Wi-Fi 6E Realtek RTL8852CE
• Padrões: 802.11 a/b/g/n/ac/ax
• Bandas: 2.4 GHz / 5 GHz / 6 GHz
• Canal 160 MHz
• Bluetooth: 5.3
________________________________________
Slots de Expansão

• 1 x PCI Express x16 (CPU):
• PCIe 5.0 x16 (Ryzen 9000 / 7000)
• PCIe 4.0 x8 (Ryzen 8000 Phoenix 1)
• PCIe 4.0 x4 (Ryzen 8000 Phoenix 2)
•
1 x PCI Express x16 (Chipset):
• PCIe 3.0 x4
________________________________________
Armazenamento

• 2 x M.2:
• M2A_CPU:
• PCIe 5.0 x4/x2 (Ryzen 9000 / 7000)
• PCIe 4.0 x4/x2 (Ryzen 8000)
• M2B_CPU:
• PCIe 4.0 x4/x2 (Ryzen 9000 / 7000)
• PCIe 4.0 x4/x2 (Ryzen 8000 Phoenix 1)
• PCIe 4.0 x2 (Ryzen 8000 Phoenix 2)
•     4 x SATA III 6 Gb/s

• RAID:
• NVMe: RAID 0 / 1 / 5 / 10 (RAID 5 disponível apenas para Ryzen 9000)
• SATA: RAID 0 / 1 / 10
________________________________________
USB

Painel Traseiro

• 1 x USB Type-C® USB 3.2 Gen 2
• 2 x USB 3.2 Gen 2 Type-A (vermelhas)
• 5 x USB 3.2 Gen 1
• 4 x USB 2.0

Conectores Internos

• 1 x USB Type-C® USB 3.2 Gen 2x2
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0 headers
________________________________________
Conectores Internos

• 1 x ATX 24 pinos
• 1 x ATX 12V 8 pinos
• 1 x CPU Fan
• 1 x CPU Fan / Water Pump
• 3 x System Fan
• 1 x System Fan / Water Pump
• 3 x RGB Addressable Gen2
• 1 x RGB padrão
• 1 x Áudio frontal
• 1 x Painel frontal
• 1 x TPM header

• Botões e jumpers:
• Reset
• Clear CMOS
________________________________________
Painel Traseiro

• 1 x DisplayPort
• 1 x HDMI
• 1 x Q-Flash Plus
•1 x RJ-45
• 2 x conectores de antena
• 2 x jacks de áudio
• 1 x saída óptica S/PDIF
________________________________________
BIOS

• 1 x Flash ROM 256 Mbit
• AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, ACPI 5.0
________________________________________
Recursos

• GIGABYTE Control Center (GCC)
• Q-Flash
• Q-Flash Plus
• Smart Backup
________________________________________
Sistema Operacional

• Windows 11 64-bit
• Windows 10 64-bit
________________________________________
Formato

• Micro ATX
• Dimensões: 24.4 x 24.4 cm
