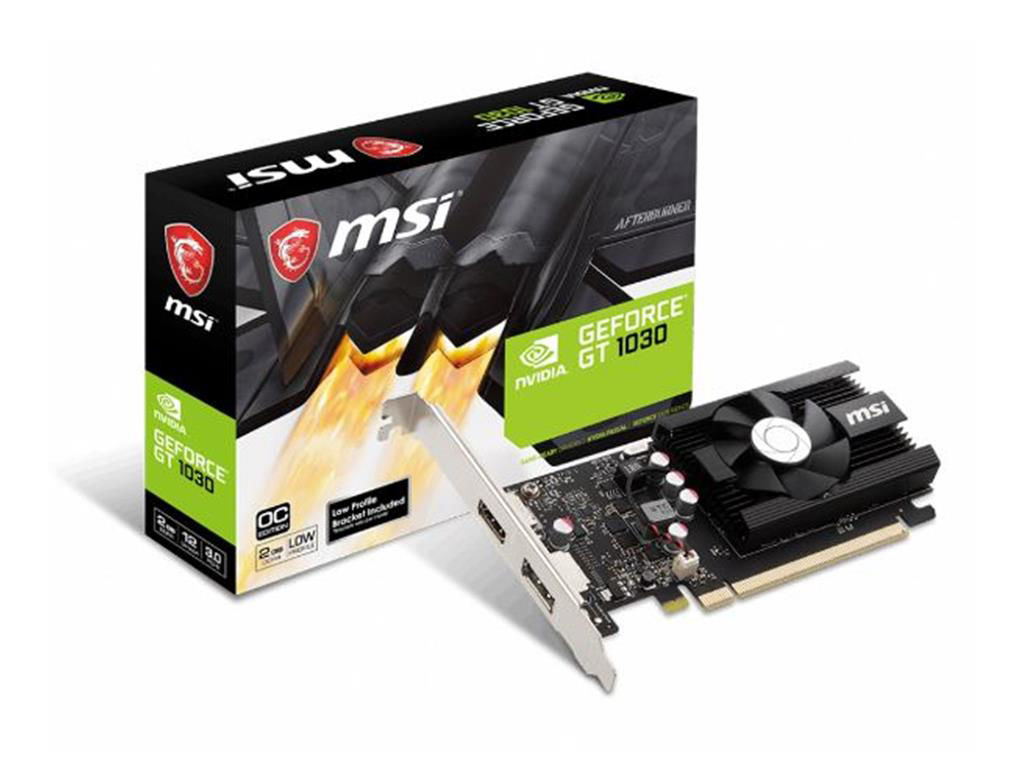

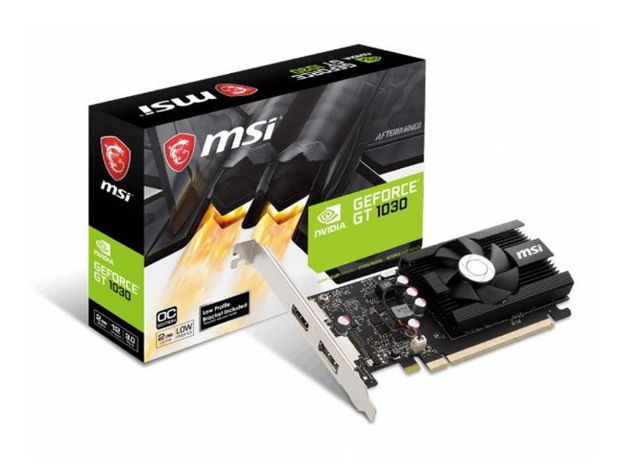

Model Name GeForce®
GT 1030 2GD4 LP OC
Graphics Processing Unit NVIDIA®
GeForce®
GT 1030
Interface PCI Express 3.0 x16 (uses x4)
Cores 384 Units
Core Clocks 1189 MHz / 1430 MHz
Memory Speed 2100 MHz
Memory 2GB DDR4
Memory Bus 64-bit
Output
DisplayPort (v1.4a)
HDMI (Supports 4K@60Hz as specified in HDMI
2.0b)
HDCP Support 2.2
Power consumption 20 W
Recommended PSU 300 W
Card Dimension (mm) 150 x 69 x 19 mm
Weight (Card / Package) 131 g / 371 g
DirectX Version Support 12
OpenGL Version Support 4.5
Afterburner OC Y
Maximum Displays 2
Accessories Low Profile Bracket x 1
