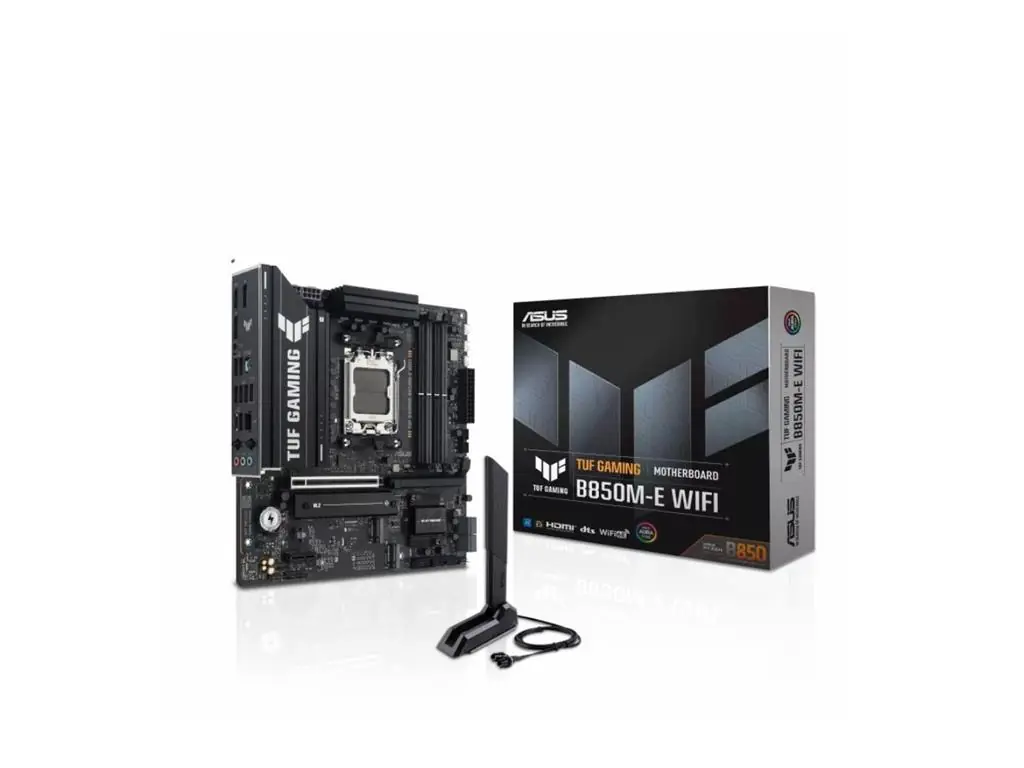

Placa Mae Asus Amd (Am5) Ddr5 Micro Atx - Tuf Gaming B850m-E Wifi

________________________________________
Especificações Técnicas

Soquete: AM5
Chipset: AMD B850
Formato: Micro-ATX (24,4 cm x 24,4 cm)
________________________________________
Processadores Compatíveis

• AMD Ryzen™ 9000 Series
• AMD Ryzen™ 8000 Series
• AMD Ryzen™ 7000 Series
________________________________________
Memória

• 4x DIMM DDR5 até 256GB
• Suporte até 8000+ MT/s (OC)
• Dual Channel
• Suporte a ECC e Non-ECC Unbuffered
• Compatível com AMD EXPO™ e ASUS AEMP
________________________________________
Vídeo (depende da CPU com gráfico integrado)

• 2x DisplayPort (até 8K@60Hz – DP 1.4)
• 1x HDMI™ (até 4K@60Hz – HDMI 2.1)
________________________________________
Slots de Expansão

• 1x PCIe 5.0 x16 (Ryzen 9000/7000)
• 1x PCIe 4.0 x16 (Ryzen 8000 – x8/x4)
• 1x PCIe 4.0 x1
________________________________________
Armazenamento

• 3x M.2 (PCIe 5.0/4.0 x4 conforme CPU)
• 4x SATA 6Gb/s
• Suporte AMD RAIDXpert2
• RAID 0/1/5/10 (Ryzen 9000)
• RAID 0/1 (Ryzen 8000)
• RAID 0/1/10 (Ryzen 7000)
________________________________________
Rede

• Realtek 2.5Gb Ethernet
• TUF LANGuard
• Wi-Fi 6E (2x2 – 2.4/5/6GHz)
• Bluetooth 5.3
________________________________________
USB

Painel Traseiro (8 portas):

• 1x USB 10Gbps Type-A
• 1x USB 10Gbps Type-C
• 2x USB 5Gbps Type-A
• 4x USB 2.0

Conectores Internos:

• 1x USB 5Gbps Type-C
• 1x Header USB 5Gbps (2 portas adicionais)
• 2x Headers USB 2.0 (4 portas adicionais)
________________________________________
Áudio

• Realtek 7.1 HD Audio
• Até 24-bit / 192kHz
• Audio Shielding
• Capacitores premium
• Camadas dedicadas de PCB
________________________________________
Recursos

• ASUS TUF Protection (DIGI+ VRM com DrMOS, ESD Guards, SafeSlot, Overvoltage Protection)
• Dissipador para VRM e M.2
• M.2 Q-Latch
• PCIe Q-Release
• Q-DIMM / Q-Slot / Q-LED
• BIOS FlashBack™
• I/O Shield pré-montado
• Aura Sync (Addressable RGB Gen 2)
• BIOS UEFI AMI 256Mb
________________________________________
